0405-0-15-80-34-27-04-0

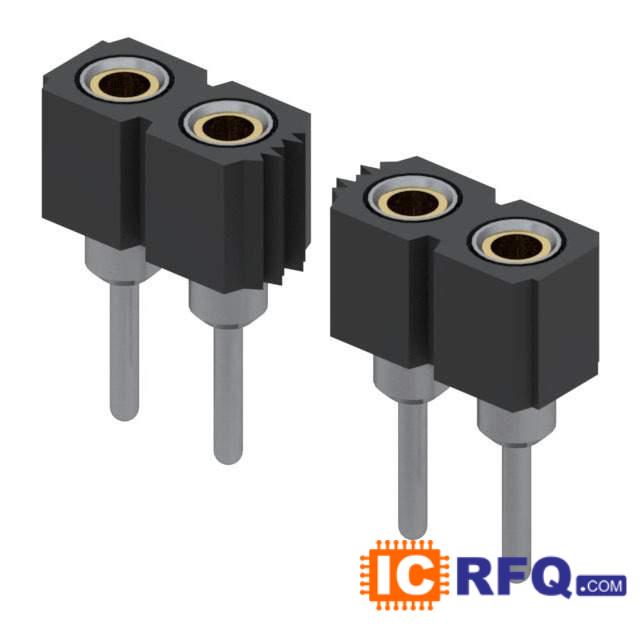

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 0405-0-15-80-34-27-04-0 |
|---|---|
| Manufacturer | Mill-Max Manufacturing Corp. |
| Description | Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Press-Fit |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 0405-0-15-80-34-27-04-0 Price |  |
Technical Specifications of 0405-0-15-80-34-27-04-0
| Datasheet |  0405-0-15-80-34-27-04-0 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 0405 |
| Packaging | Bulk |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
| Length - Overall | 0.375" (9.53mm) |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
| Mounting Hole Diameter | 0.084" (2.13mm) |
| Pin Hole Diameter | 0.064" (1.63mm) |
| Flange Diameter | 0.090" (2.29mm) |
| Tail Diameter | 0.030" (0.76mm) |
| Socket Depth | 0.220" (5.59mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Board Thickness | - |
| Insertion Force | - |
