05-06-0301

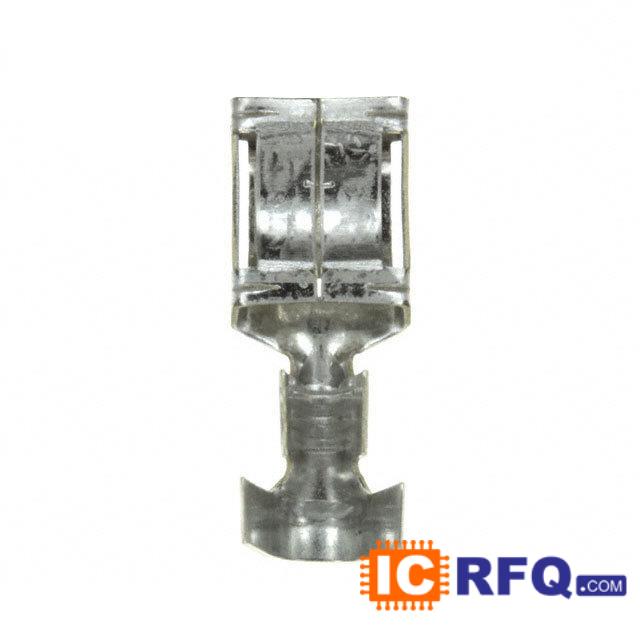

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 05-06-0301 |
|---|---|
| Manufacturer | Molex Connector Corporation |
| Description | 0.187" (4.75mm) Quick Connect Female 14-22 AWG Crimp Connector Non-Insulated |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 05-06-0301 Price |  |
Technical Specifications of 05-06-0301
| Datasheet |  05-06-0301 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminals - Quick Connects, Quick Disconnect Connectors |
| Manufacturer | Molex Connector Corporation |
| Series | 2176 |
| Packaging | Tape & Reel (TR) |
| Terminal Type | Flat Blade |
| Gender | Female |
| Tab Width | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) |
| Tab Length | 0.275" (6.99mm) |
| Length - Overall | 0.630" (16.00mm) |
| Termination | Crimp |
| Wire Gauge | 14-22 AWG |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Features | - |
| Color | - |
| Contact Material | Brass |
| Contact Finish | Tin |
| Insulation Diameter | 0.031" (0.79mm) |
