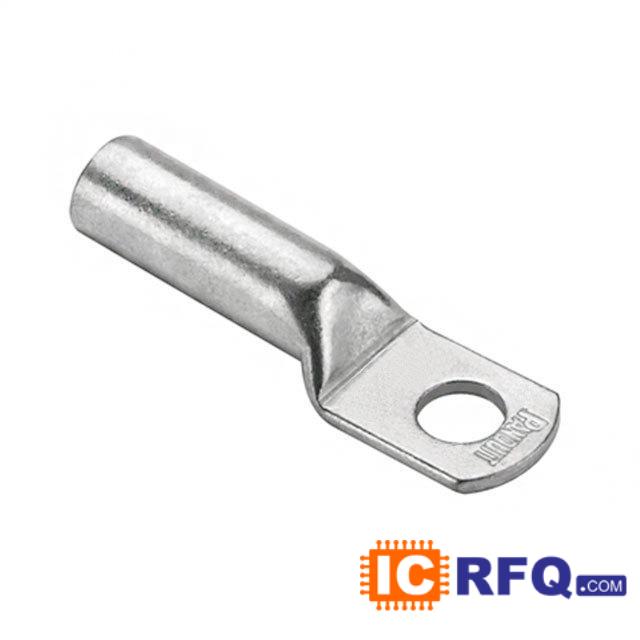

Technical Specifications of LCMB25-10-L
| Datasheet |  LCMB25-10-L datasheet |
|---|
| Category | Connectors, Interconnects |
|---|
| Family | Terminals - Rectangular Connectors |
|---|
| Manufacturer | Panduit Corp |
|---|
| Series | LCMB |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | Ring, Tubular |
|---|
| Stud/Tab Size | M10 Stud |
|---|
| Terminal Style | Single Stud Hole |
|---|
| Tab Thickness | 0.059" (1.50mm) |
|---|
| Length - Overall | 1.917" (48.70mm) |
|---|
| Width - Outer Edges | 0.610" (15.49mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | Crimp, Barrel |
|---|
| Wire Gauge | 25mm2 |
|---|
| Insulation | Non-Insulated |
|---|
| Features | - |
|---|
| Color | - |
|---|
| Contact Finish | Tin |
|---|
| Contact Material | Copper |
|---|
| Diameter - Barrel ID | 0.272" (6.91mm) |
|---|
| Diameter - Barrel OD | 0.346" (8.79mm) |
|---|
| Diameter - Ring ID | 0.433" (11.00mm) |
|---|
We can supply Panduit Corp part# LCMB25-10-L. Use the request quote form to request LCMB25-10-L pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LCMB25-10-L. The price and lead time for LCMB25-10-L depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# LCMB25-10-L. We look forward to doing business with you.
