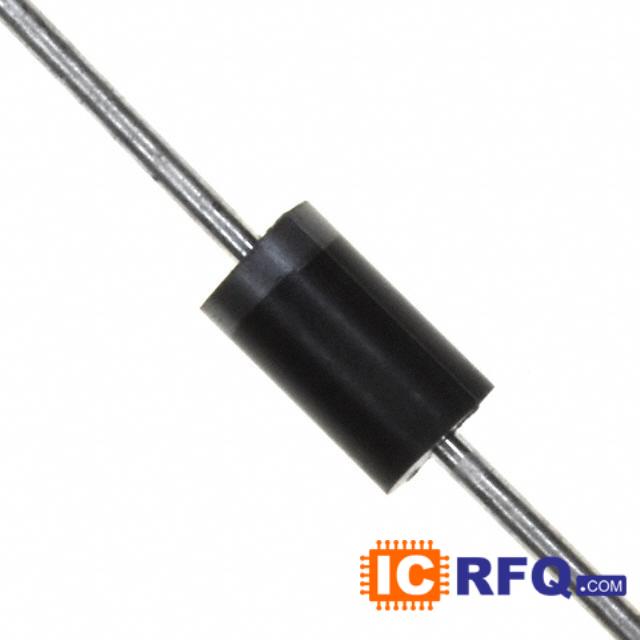

Technical Specifications of SB560-E3/54
| Datasheet |  SB560-E3/54 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Diodes - Rectifiers - Single |
|---|
| Manufacturer | Vishay Semiconductor Diodes Division |
|---|
| Series | - |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Diode Type | Schottky |
|---|
| Voltage - DC Reverse (Vr) (Max) | 60V |
|---|
| Current - Average Rectified (Io) | 5A |
|---|
| Voltage - Forward (Vf) (Max) @ If | 650mV @ 5A |
|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 500μA @ 60V |
|---|
| Capacitance @ Vr, F | - |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | DO-201AD, Axial |
|---|
| Supplier Device Package | DO-201AD |
|---|
| Operating Temperature - Junction | -65°C ~ 150°C |
|---|
We can supply Vishay Semiconductor Diodes Division part# SB560-E3/54. Use the request quote form to request SB560-E3/54 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SB560-E3/54. The price and lead time for SB560-E3/54 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# SB560-E3/54. We look forward to doing business with you.
