UP0411200L

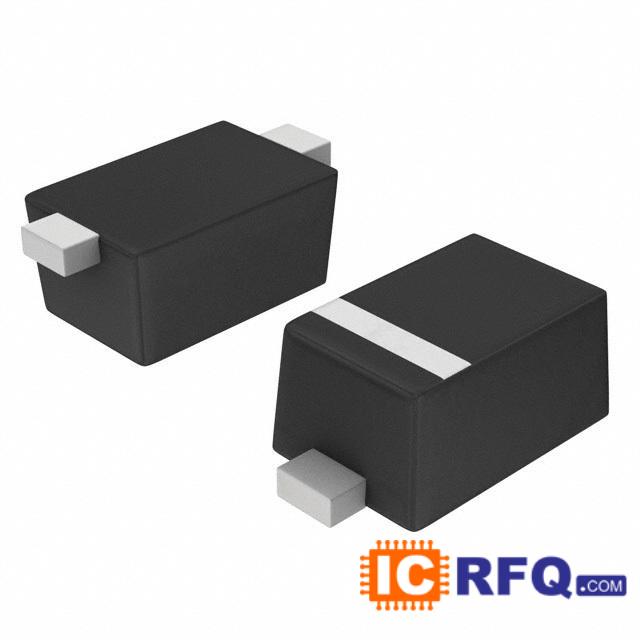

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | UP0411200L |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | TRANS PREBIAS DUAL PNP SSMINI6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| UP0411200L Price |  |
Technical Specifications of UP0411200L
| Datasheet |  UP0411200L datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Manufacturer | Panasonic Electronic Components |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 2 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) (Ohms) | 22k |
| Resistor - Emitter Base (R2) (Ohms) | 22k |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300μA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 80MHz |
| Power - Max | 125mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SSMINI6-F1 |
