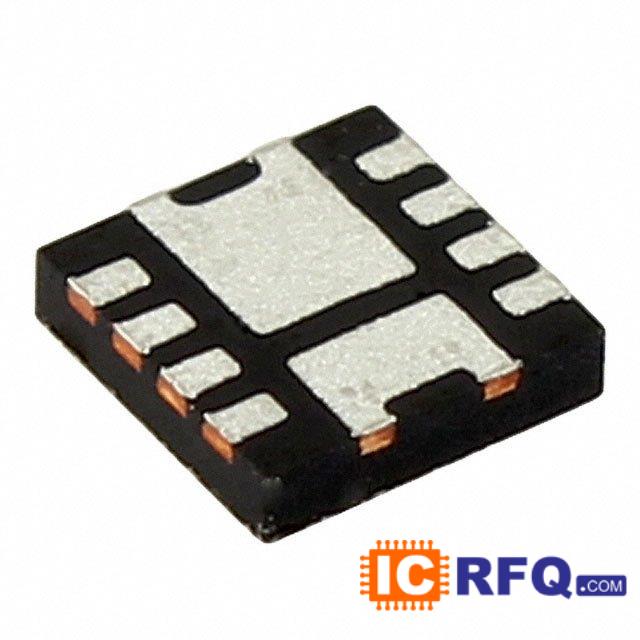

Technical Specifications of FDPC8012S
| Datasheet |  FDPC8012S datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Arrays |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Series | PowerTrench? |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | 2 N-Channel (Dual) Asymmetrical |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 25V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 13A, 26A |
|---|
| Rds On (Max) @ Id, Vgs | 7 mOhm @ 12A, 4.5V |
|---|
| Vgs(th) (Max) @ Id | 2.2V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 8nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 1075pF @ 13V |
|---|
| Power - Max | 800mW, 900mW |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 8-PowerWDFN |
|---|
| Supplier Device Package | 8-PQFN (3.3x3.3), Power33 |
|---|
We can supply Fairchild Semiconductor part# FDPC8012S. Use the request quote form to request FDPC8012S pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDPC8012S. The price and lead time for FDPC8012S depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# FDPC8012S. We look forward to doing business with you.
