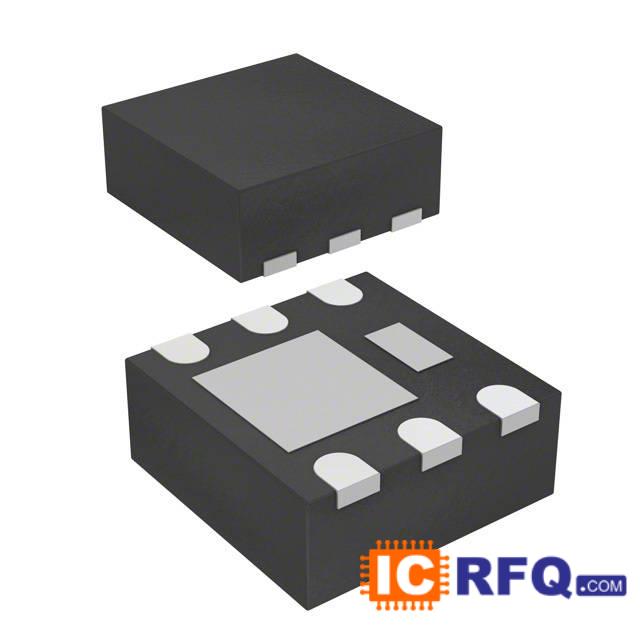

Technical Specifications of FDM2509NZ
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Arrays |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Series | PowerTrench? |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | 2 N-Channel (Dual) |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 20V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 8.7A |
|---|
| Rds On (Max) @ Id, Vgs | 18 mOhm @ 8.7A, 4.5V |
|---|
| Vgs(th) (Max) @ Id | 1.5V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 17nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 1200pF @ 10V |
|---|
| Power - Max | 800mW |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 6-WFDFN Exposed Pad |
|---|
| Supplier Device Package | 6-MicroFET (2x5) |
|---|
We can supply Fairchild Semiconductor part# FDM2509NZ. Use the request quote form to request FDM2509NZ pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDM2509NZ. The price and lead time for FDM2509NZ depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# FDM2509NZ. We look forward to doing business with you.
