TK13A65U(STA4,Q,M)

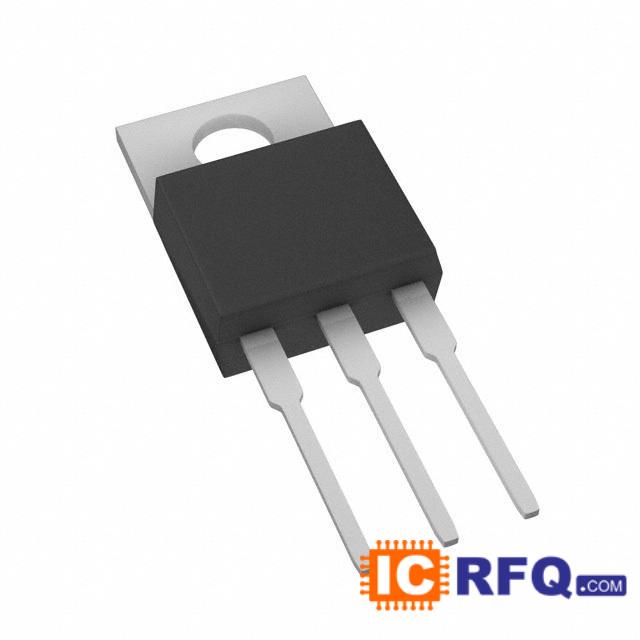

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Manufacturer Part Number | TK13A65U(STA4,Q,M) |
---|---|
Manufacturer | Toshiba Semiconductor and Storage |
Description | MOSFET N-CH 650V 13A TO-220SIS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
TK13A65U(STA4,Q,M) Price | ![]() |
Technical Specifications of TK13A65U(STA4,Q,M)
Datasheet | ![]() |
---|---|
Category | Discrete Semiconductor Products |
Family | Transistors - FETs, MOSFETs - Single |
Manufacturer | Toshiba Semiconductor and Storage |
Series | - |
Packaging | Tube |
FET Type | MOSFET N-Channel, Metal Oxide |
FET Feature | Standard |
Drain to Source Voltage (Vdss) | 650V |
Current - Continuous Drain (Id) @ 25°C | 13A (Ta) |
Rds On (Max) @ Id, Vgs | 380 mOhm @ 6.5A, 10V |
Vgs(th) (Max) @ Id | 5V @ 1mA |
Gate Charge (Qg) @ Vgs | 17nC @ 10V |
Input Capacitance (Ciss) @ Vds | 950pF @ 10V |
Power - Max | 40W |
Operating Temperature | 150°C (TJ) |
Mounting Type | Through Hole |
Package / Case | TO-220-3 Full Pack |
Supplier Device Package | TO-220SIS |
