Technical Specifications of STD40N2LH5
| Datasheet |  STD40N2LH5 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Single |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Series | STripFET? V |
|---|
| Packaging | Cut Tape (CT) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 25V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 11.8 mOhm @ 20A, 10V |
|---|
| Vgs(th) (Max) @ Id | 1V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 6.3nC @ 5V |
|---|
| Input Capacitance (Ciss) @ Vds | 700pF @ 20V |
|---|
| Power - Max | 35W |
|---|
| Operating Temperature | -55°C ~ 175°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

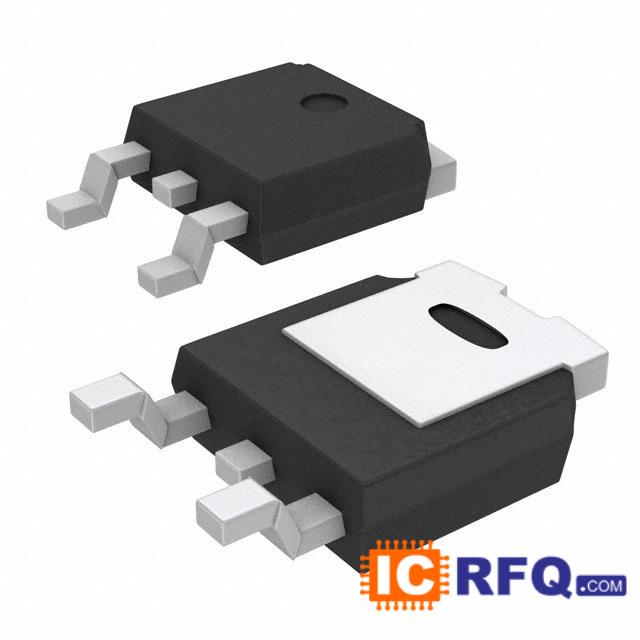

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|---|
| Supplier Device Package | D-Pak |
|---|
We can supply STMicroelectronics part# STD40N2LH5. Use the request quote form to request STD40N2LH5 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STD40N2LH5. The price and lead time for STD40N2LH5 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# STD40N2LH5. We look forward to doing business with you.
