Technical Specifications of IRF5804TRPBF
| Datasheet |  IRF5804TRPBF datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Single |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Series | HEXFET? |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET P-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 40V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
|---|
| Rds On (Max) @ Id, Vgs | 198 mOhm @ 2.5A, 10V |
|---|
| Vgs(th) (Max) @ Id | 3V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 8.5nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 680pF @ 25V |
|---|
| Power - Max | 2W |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

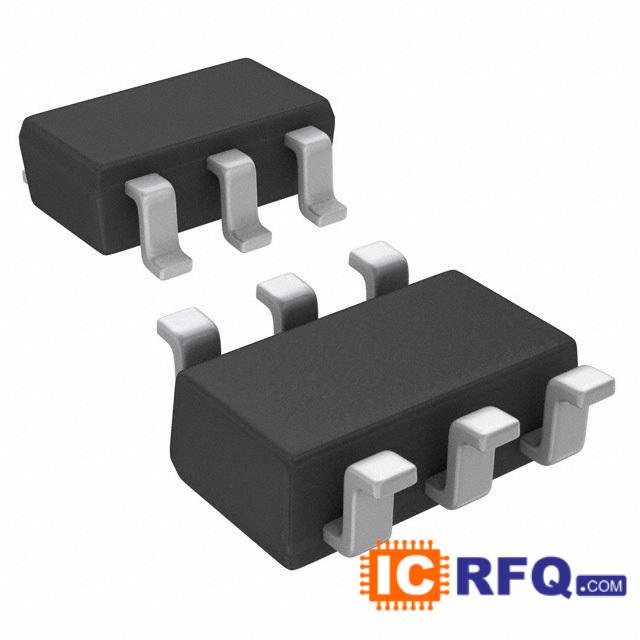

| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
|---|
| Supplier Device Package | Micro6?(TSOP-6) |
|---|
We can supply Infineon Technologies part# IRF5804TRPBF. Use the request quote form to request IRF5804TRPBF pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF5804TRPBF. The price and lead time for IRF5804TRPBF depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IRF5804TRPBF. We look forward to doing business with you.
