TK10A55D(STA4,Q,M)
.jpg)

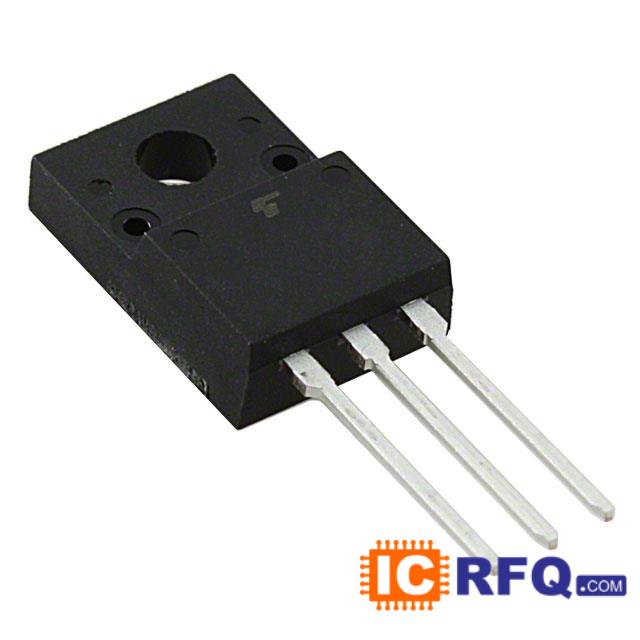

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | TK10A55D(STA4,Q,M) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 550V 10A TO-220SIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| TK10A55D(STA4,Q,M) Price |  |
Technical Specifications of TK10A55D(STA4,Q,M)
| Datasheet |  TK10A55D(STA4,Q,M) datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - FETs, MOSFETs - Single |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 550V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Rds On (Max) @ Id, Vgs | 720 mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) @ Vgs | 24nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 1200pF @ 25V |
| Power - Max | 45W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220SIS |
