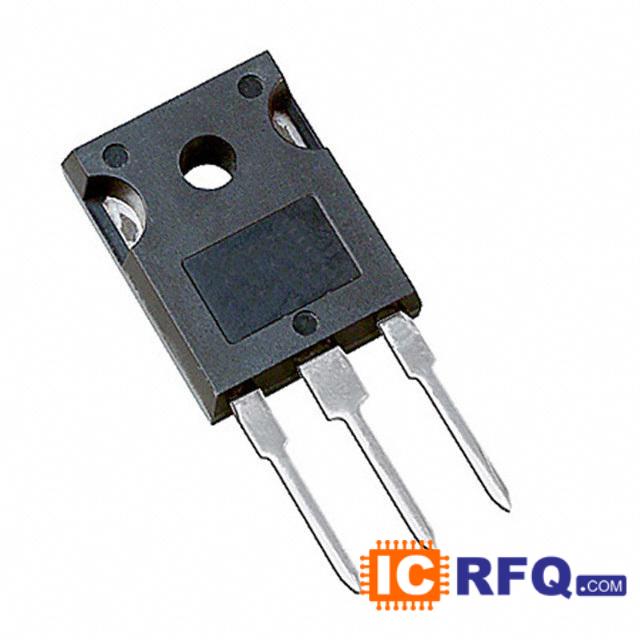

Technical Specifications of IRG4PC50UD-EPBF
| Datasheet |  IRG4PC50UD-EPBF datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - IGBTs - Single |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Series | - |
|---|
| Packaging | Bulk |
|---|
| IGBT Type | - |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 600V |
|---|
| Current - Collector (Ic) (Max) | 55A |
|---|
| Current - Collector Pulsed (Icm) | 220A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 27A |
|---|
| Power - Max | 200W |
|---|
| Switching Energy | 990μJ (on), 590μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 180nC |
|---|
| Td (on/off) @ 25°C | 46ns/140ns |
|---|
| Test Condition | 480V, 27A, 5 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | 50ns |
|---|
| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-247AC |
|---|
We can supply Infineon Technologies part# IRG4PC50UD-EPBF. Use the request quote form to request IRG4PC50UD-EPBF pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4PC50UD-EPBF. The price and lead time for IRG4PC50UD-EPBF depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IRG4PC50UD-EPBF. We look forward to doing business with you.
