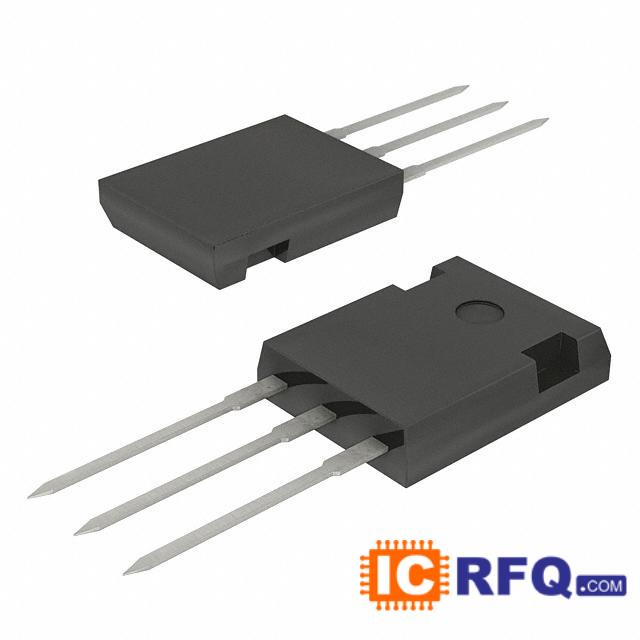

Technical Specifications of IXSH20N60B2D1
| Datasheet |  IXSH20N60B2D1 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - IGBTs - Single |
|---|
| Manufacturer | IXYS |
|---|
| Series | - |
|---|
| Packaging | Bulk |
|---|
| IGBT Type | PT |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 600V |
|---|
| Current - Collector (Ic) (Max) | 35A |
|---|
| Current - Collector Pulsed (Icm) | 60A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 16A |
|---|
| Power - Max | 190W |
|---|
| Switching Energy | 380μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 33nC |
|---|
| Td (on/off) @ 25°C | 30ns/116ns |
|---|
| Test Condition | 480V, 16A, 10 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | 30ns |
|---|
| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-247AD (IXSH) |
|---|
We can supply IXYS part# IXSH20N60B2D1. Use the request quote form to request IXSH20N60B2D1 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXSH20N60B2D1. The price and lead time for IXSH20N60B2D1 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IXSH20N60B2D1. We look forward to doing business with you.
