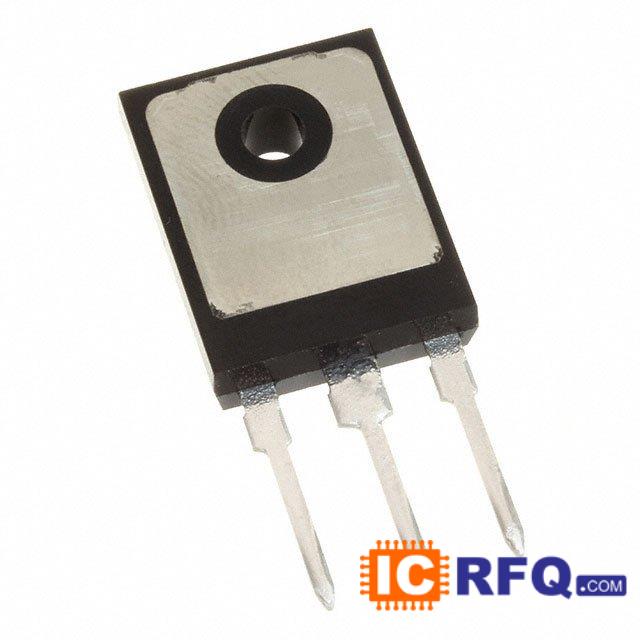

Technical Specifications of IKW50N65ES5XKSA1
| Datasheet |  IKW50N65ES5XKSA1 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - IGBTs - Single |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Series | TrenchStop? |
|---|
| Packaging | Tube |
|---|
| IGBT Type | Trench |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 650V |
|---|
| Current - Collector (Ic) (Max) | 80A |
|---|
| Current - Collector Pulsed (Icm) | 200A |
|---|
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 50A |
|---|
| Power - Max | 274W |
|---|
| Switching Energy | 1.23mJ (on), 550μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 120nC |
|---|
| Td (on/off) @ 25°C | 20ns/127ns |
|---|
| Test Condition | 400V, 50A, 8.2 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | 70ns |
|---|
| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | PG-TO247-3 |
|---|
We can supply Infineon Technologies part# IKW50N65ES5XKSA1. Use the request quote form to request IKW50N65ES5XKSA1 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IKW50N65ES5XKSA1. The price and lead time for IKW50N65ES5XKSA1 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IKW50N65ES5XKSA1. We look forward to doing business with you.
