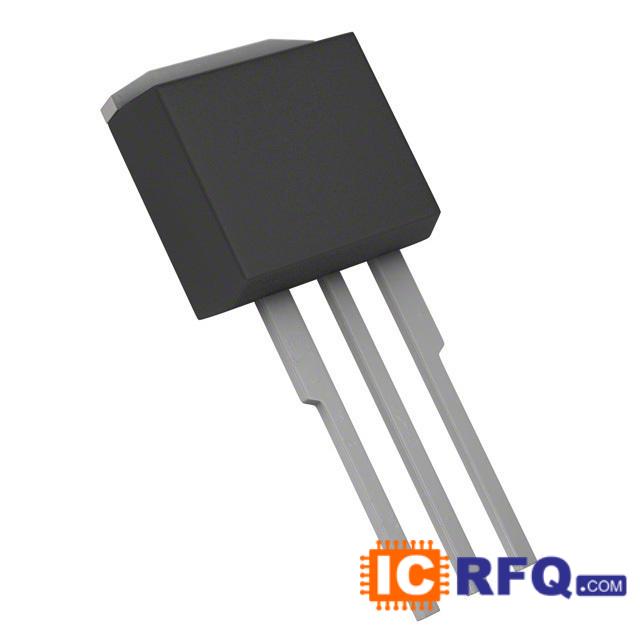

Technical Specifications of IRGSL10B60KDPBF
| Datasheet |  IRGSL10B60KDPBF datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - IGBTs - Single |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Series | - |
|---|
| Packaging | Tube |
|---|
| IGBT Type | NPT |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 600V |
|---|
| Current - Collector (Ic) (Max) | 22A |
|---|
| Current - Collector Pulsed (Icm) | 44A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 10A |
|---|
| Power - Max | 156W |
|---|
| Switching Energy | 140μJ (on), 250μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 38nC |
|---|
| Td (on/off) @ 25°C | 30ns/230ns |
|---|
| Test Condition | 400V, 10A, 47 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | 90ns |
|---|
| Package / Case | TO-262-3 Long Leads, I2Pak, TO-262AA |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-262 |
|---|
We can supply Infineon Technologies part# IRGSL10B60KDPBF. Use the request quote form to request IRGSL10B60KDPBF pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRGSL10B60KDPBF. The price and lead time for IRGSL10B60KDPBF depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IRGSL10B60KDPBF. We look forward to doing business with you.
