Technical Specifications of IRG7PH35U-EP
| Datasheet |  IRG7PH35U-EP datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - IGBTs - Single |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Series | - |
|---|
| Packaging | Tube |
|---|
| IGBT Type | Trench |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
|---|
| Current - Collector (Ic) (Max) | 55A |
|---|
| Current - Collector Pulsed (Icm) | 60A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 20A |
|---|
| Power - Max | 210W |
|---|
| Switching Energy | 1.06mJ (on), 620μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 130nC |
|---|
| Td (on/off) @ 25°C | 30ns/160ns |
|---|
| Test Condition | 600V, 20A, 10 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | - |
|---|

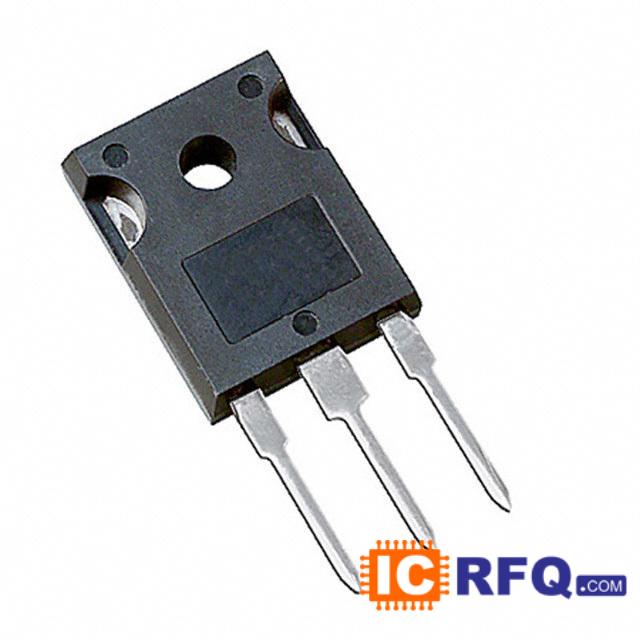

| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-247AD |
|---|
We can supply Infineon Technologies part# IRG7PH35U-EP. Use the request quote form to request IRG7PH35U-EP pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG7PH35U-EP. The price and lead time for IRG7PH35U-EP depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IRG7PH35U-EP. We look forward to doing business with you.
