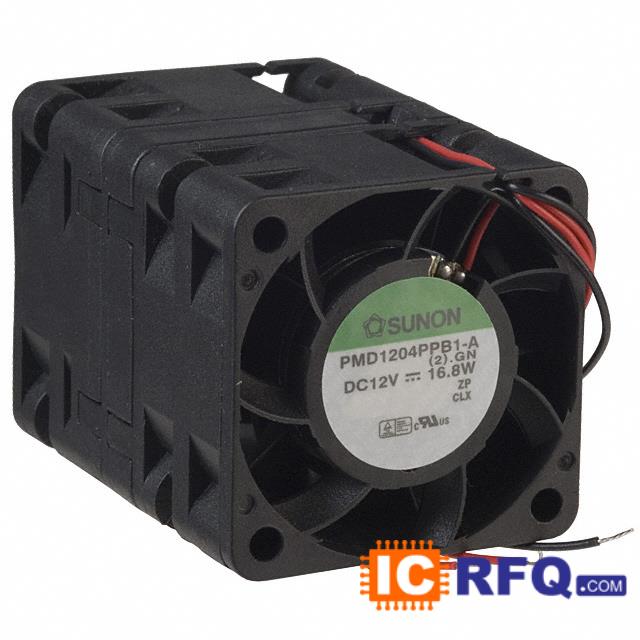

Technical Specifications of PMD1204PPB1-A.(2).GN
| Category | Fans, Thermal Management |
|---|
| Family | DC Fans |
|---|
| Manufacturer | Sunon Fans |
|---|
| Series | MagLev? |
|---|
| Voltage - Rated | 12VDC |
|---|
| Size / Dimension | Square - 40mm L x 40mm H |
|---|
| Width | 56mm |
|---|
| Air Flow | 26.5 CFM (0.750m3/min) |
|---|
| Static Pressure | 1.730 in H2O (430.9 Pa) |
|---|
| Bearing Type | Ball |
|---|
| Fan Type | Tubeaxial (Dual) |
|---|
| Features | - |
|---|
| Noise | 59 dB(A) |
|---|
| Power (Watts) | 16.8W |
|---|
| RPM | 14500 Front, 9500 Rear |
|---|
| Termination | 2 Wire Leads per Fan |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
|---|
| Approvals | CE, CUR, TUV, UL |
|---|
| Current Rating | 1.4A |
|---|
| Voltage Range | 6 ~ 13.8VDC |
|---|
| Material - Frame | Polybutylene Terephthalate (PBT) |
|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
|---|
| Weight | 0.195 lb (88.45g) |
|---|
We can supply Sunon Fans part# PMD1204PPB1-A.(2).GN. Use the request quote form to request PMD1204PPB1-A.(2).GN pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMD1204PPB1-A.(2).GN. The price and lead time for PMD1204PPB1-A.(2).GN depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# PMD1204PPB1-A.(2).GN. We look forward to doing business with you.
