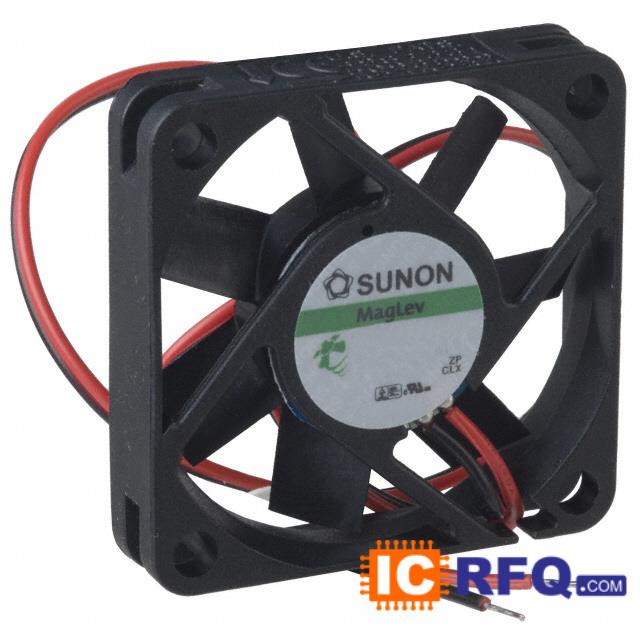

Technical Specifications of KDE0545PFV1.11.MS.A.GN
| Category | Fans, Thermal Management |
|---|
| Family | DC Fans |
|---|
| Manufacturer | Sunon Fans |
|---|
| Series | MagLev? |
|---|
| Voltage - Rated | 5VDC |
|---|
| Size / Dimension | Square - 45mm L x 45mm H |
|---|
| Width | 10.00mm |
|---|
| Air Flow | 11.0 CFM (0.311m3/min) |
|---|
| Static Pressure | 0.170 in H2O (42.3 Pa) |
|---|
| Bearing Type | Vapo-Bearing? |
|---|
| Fan Type | Tubeaxial |
|---|
| Features | - |
|---|
| Noise | 32 dB(A) |
|---|
| Power (Watts) | 1.30W |
|---|
| RPM | 6000 RPM |
|---|
| Termination | 2 Wire Leads |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
|---|
| Approvals | CE, CUR, TUV, UL |
|---|
| Current Rating | 0.250A |
|---|
| Voltage Range | 4 ~ 6VDC |
|---|
| Material - Frame | Polybutylene Terephthalate (PBT) |
|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
|---|
| Weight | 0.042 lb (19.05g) |
|---|
We can supply Sunon Fans part# KDE0545PFV1.11.MS.A.GN. Use the request quote form to request KDE0545PFV1.11.MS.A.GN pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KDE0545PFV1.11.MS.A.GN. The price and lead time for KDE0545PFV1.11.MS.A.GN depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# KDE0545PFV1.11.MS.A.GN. We look forward to doing business with you.
