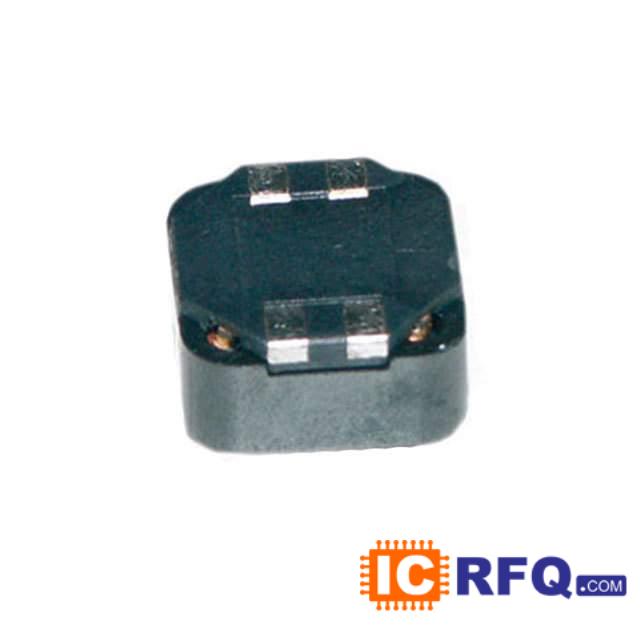

Technical Specifications of 744870101
| Datasheet |  744870101 datasheet |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Family | Arrays, Signal Transformers |
|---|
| Manufacturer | Wurth Electronics Inc |
|---|
| Series | WE-DD |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Part Status | Active |
|---|
| Number of Coils | 2 |
|---|
| Inductance - Connected In Series | 400μH |
|---|
| Inductance - Connected In Parallel | 100μH |
|---|
| Tolerance | ±20% |
|---|
| Current Rating - Parallel | 1.4A |
|---|
| Current Rating - Series | 700mA |
|---|
| Current Saturation - Parallel | 2A |
|---|
| Current Saturation - Series | 1A |
|---|
| DC Resistance (DCR) - Parallel | 300 mOhm Max |
|---|
| DC Resistance (DCR) - Series | - |
|---|
| Shielding | Shielded |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Nonstandard |
|---|
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
|---|
| Height | 0.335" (8.50mm) |
|---|
We can supply Wurth Electronics Inc part# 744870101. Use the request quote form to request 744870101 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 744870101. The price and lead time for 744870101 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 744870101. We look forward to doing business with you.
