How To Choose an Electronic Diode: The Ultimate Guide

Electronic diodes are fundamental components in modern electronics, acting as one-way valves for electrical current. Selecting the right diode for your project is critical to ensuring optimal performance, efficiency, and reliability. This guide provides a comprehensive breakdown of diode selection criteria, types, applications, and best practices.

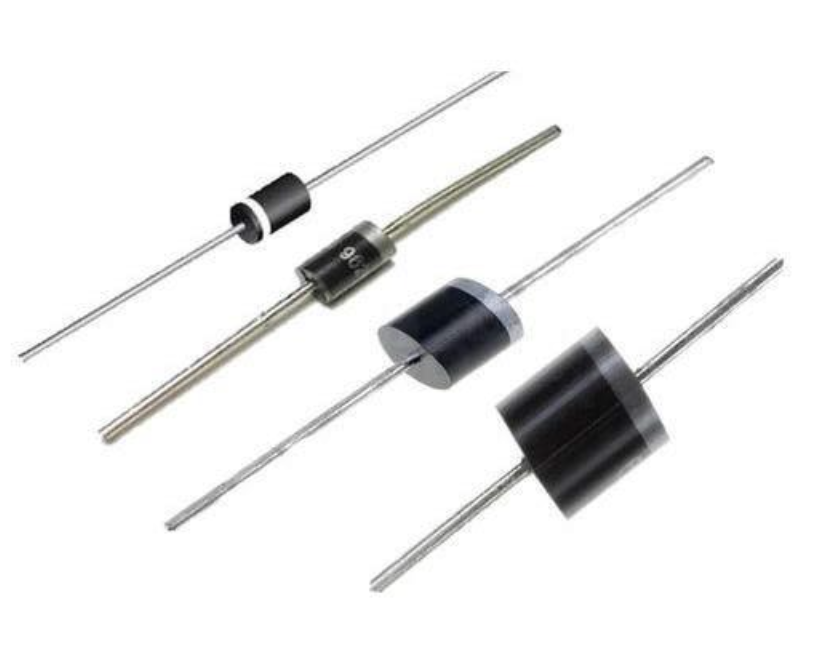

1. Understanding Diodes: Basics and Functionality

A diode is a semiconductor device that allows current to flow in one direction (forward bias) while blocking it in the opposite direction (reverse bias). Its primary functions include rectification, signal modulation, voltage regulation, and circuit protection.

Key Characteristics:

Forward Voltage Drop (Vf): The voltage required to turn the diode "on" (typically 0.3V–1.5V).

Reverse Breakdown Voltage (Vr): The maximum reverse voltage a diode can withstand before conducting.

Forward Current (If): Maximum continuous current in forward bias.

Switching Speed: Time taken to transition between conducting and non-conducting states.

2. Types of Diodes and Their Applications

Different diodes are optimized for specific roles. Here’s a breakdown of common types:

A. Rectifier Diodes

Purpose: Convert AC to DC in power supplies.

Examples: 1N400x series (1A), 1N540x series (3A).

Key Specs: High forward current (1A–50A), moderate switching speed.

B. Zener Diodes

Purpose: Voltage regulation and surge protection.

Examples: 1N4732A (4.7V), BZX55 series.

Key Specs: Defined breakdown voltage (Vz), power dissipation (up to 1W).

C. Schottky Diodes

Purpose: High-speed switching, low-loss applications.

Examples: 1N5817, BAT54.

Key Specs: Low forward voltage (~0.2V), fast recovery time.

D. Light-Emitting Diodes (LEDs)

Purpose: Lighting and indicators.

Key Specs: Forward voltage (1.8V–3.3V), luminous intensity (measured in mcd).

E. Fast Recovery/Switching Diodes

Purpose: High-frequency circuits (e.g., SMPS, inverters).

Examples: UF4007, FR107.

Key Specs: Ultra-fast reverse recovery time (<100ns).

F. TVS Diodes (Transient Voltage Suppressors)

Purpose: Protect circuits from voltage spikes (ESD, surges).

Examples: P6KE, 1.5KE series.

Key Specs: Peak pulse power (up to 5kW).

G. Varactor Diodes

Purpose: Voltage-controlled capacitors (e.g., tuning circuits).

Examples: BBY40, MV2109.

Key Specs: Capacitance range (1pF–500pF).

3. Critical Selection Parameters

A. Forward Voltage (Vf)

Why It Matters: Affects power loss and heat generation.

Rule of Thumb: Use Schottky diodes for low Vf in high-efficiency circuits.

B. Maximum Forward Current (If)

Calculation: Ensure diode’s If exceeds the circuit’s peak current. Derate by 20% for safety.

C. Reverse Voltage (Vr)

Safety Margin: Choose a Vr at least 20% higher than the circuit’s maximum reverse voltage.

D. Switching Speed

High-Frequency Circuits: Use fast recovery diodes (e.g., UF4007) to minimize switching losses.

Rectification at 50/60Hz: Standard rectifiers (1N4007) suffice.

E. Power Dissipation (Pd)

Formula: Pd = Vf × If. Ensure the diode’s rated Pd exceeds calculated value.

Thermal Management: Use heatsinks for high-power diodes (e.g., TO-220 packages).

F. Package Type

Common Packages:

Through-Hole: DO-41 (small), TO-220 (high power).

Surface-Mount: SOD-123, SMA, SMB.

4. Application-Specific Guidance

A. Power Supply Rectification

Diode Type: Rectifier diodes (e.g., 1N4007 for 1A, GBU4J for bridge rectifiers).

Considerations:

Use full-wave bridge rectifiers for efficient AC-DC conversion.

Add snubber circuits to suppress voltage spikes.

B. High-Speed Switching (SMPS, PWM)

Diode Type: Schottky or fast recovery diodes.

Why: Minimize reverse recovery losses (critical for efficiency).

C. Voltage Regulation

Diode Type: Zener diodes.

Design Tip: Pair with a current-limiting resistor to avoid thermal runaway.

D. RF and Microwave Circuits

Diode Type: PIN diodes (e.g., HSMP-381x) for switching/attenuation.

Key Spec: Low junction capacitance (<1pF).

E. Circuit Protection

TVS Diodes: Select based on clamping voltage and peak pulse current.

Placement: Install close to the protected component.

5. Thermal and Environmental Considerations

Temperature Range: Industrial diodes operate from -55°C to +175°C. Check datasheets for derating curves.

Heat Dissipation: Use thermal pads or heatsinks for diodes dissipating >1W.

Humidity/Corrosion: Opt for epoxy-encapsulated packages in harsh environments.

6. Reliability and Lifespan

MTBF (Mean Time Between Failures): Higher for military-grade diodes.

Derating: Operate diodes at 80% of max ratings to extend lifespan.

Failure Modes:

Open circuit (overcurrent).

Short circuit (overvoltage).

7. Step-by-Step Selection Process

Define Requirements: Voltage, current, frequency, and environment.

Choose Diode Type: Match to application (e.g., Schottky for low Vf).

Check Datasheets: Verify Vf, Vr, If, and switching speed.

Thermal Analysis: Calculate Pd and plan cooling if needed.

Test Prototype: Validate performance under real conditions.

8. Top Diode Manufacturers

Vishay: High-performance rectifiers and TVS diodes.

ON Semiconductor: Schottky and Zener diodes.

Infineon: Automotive-grade diodes.

Diodes Inc.: Cost-effective general-purpose diodes.

9. Common Mistakes to Avoid

Ignoring Reverse Recovery Time: Causes inefficiency in high-frequency circuits.

Overlooking Temperature Effects: Vf decreases with temperature, altering performance.

Underrating Vr: Leads to catastrophic failure during voltage spikes.

10. Case Study: Selecting a Diode for a Solar Charger

Requirements: 12V input, 5A current, high efficiency.

Selection Process:

Diode Type: Schottky (low Vf reduces power loss).

Vr: >12V × 1.2 = 14.4V (e.g., 20V-rated diode).

If: 5A × 1.2 = 6A (e.g., SB560, 5A/60V Schottky).

Package: TO-220 with heatsink.

Conclusion

Choosing the right diode requires balancing electrical specs, thermal needs, and application demands. Always consult datasheets, derate appropriately, and prototype rigorously. With this guide, you’re equipped to make informed decisions for any project.
