Pull-up vs Pull-down Resistor: What's the difference?

Image source Circuit basics

I am building an electronic application, which type of resistor should use between pull-up and pull-down? These are two different types of resistors that both are relevant in digital electronics.

A pull-up is to raise the signal to a high level with the help of a resistor. In such a case, the resistor will act as a current limiter. On the other hand, pull down is to clamp the signals to a low level, also with the help of a resistor. In both cases, you can use electric current in place of signals

In the pull-up, the current is fed into the device while in the pull-down, the current is output from the device. Given the differences between these two types of resistors, which one should I choose?

In this article, we are going to discuss the differences between pull-up and pull-down resistors. By the end of this guide, you will be in a perfect position to choose the right resistor between the two.

What is a pull-up resistor?

A pull-up resistor is a type of resistor that is used in logical circuits to ensure that the pin is pulled to a high logical level in the circuit, especially in the absence of an input signal in that circuit. The resistor ensures that the pin always remains high regardless of the conditions.

Keep in mind that logic circuits have three major states of operation: high, low, and floating (high impedance) states.

At the floating or high impedance state, the pin is neither pulled high nor low. It is just floating between these two states.

Since digital circuits are designed to output high or low values, a pull-up input resistor is used to pull the pin to a high state.

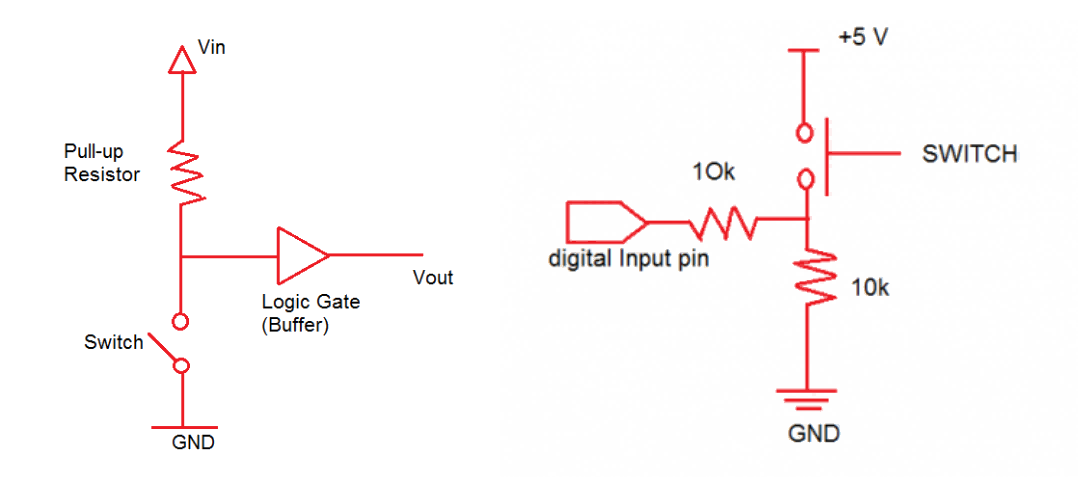

Pull-up resistors are just ordinary fixed resistors with defined resistance. They are connected to supply voltage and also an appropriate pin which is used for defining the high value of voltage in the absence of an input signal. The resistance value of a pull-up resistor will always depend on the application.

The connection of a pull-up resistor ensures that current or signal flows from the supply voltage to the input pins.

Without this resistor, the pin will keep floating whenever the circuit is on and go low when you switch off the circuit. Also, not using a pull-up resistor means that the output current or signals will be shorted to the ground. You will end up with undesirable output on your logical digital circuit.

What is a pull-down resistor?

Pull-down resistors have the same working mechanisms as pull-up resistors, only that they are designed to pull the pin to a logical low value. Usually, they are connected between the ground terminal and the in. This connection means that the pin will always remain at a low level.

The connection of the pull-down resistors also ensures that electric current flows from the digital pins to the ground.

Pull-up and pull-down resistor values

Beyond the working mechanisms, it is important to know the actual resistor values of both pull-up and pull-down resistors. The values will determine the relevance of resistors in electric circuits.

Two key factors determine the values of both the step-up and step-down resistors.

Power dissipation is one of the key factors. In case the resistance value is too low, the high current that will flow through the pull-up resistor will generate heat and use more power than what it's designed for.

Pin voltage is another key factor that determines the resistance of pull-up and pull-down resistors. It becomes a factor when the switch is open as it can be a source of the current leak.

Calculating the values of pull-up and pull-down resistors

The most important aspect of both pull-up and pull-down resistors is finding out their values. The numbers will help you determine the actual level of the output.

In most digital logic circuits, the values of pull-ups and pull-down resistors tend to range between 2 k Ω and 7 k Ω. But what are the actual values of these resistors? To answer this question, you need to ask one key question: how what amount of voltage is referred to as either logic low or logic high?

Once you know this voltage, it will be easy to determine the value of either a pull-up or pull-up resistor. Also, using the voltage, we can find the actual resistance value by going back to the Ohms law which gives us the formula V=I*R and R=V/I.

For the case of a pull-up resistor, the V will be the maximum source voltage -Minimum voltage and the current will be the maximum current passing through the circuit.

This gives us the formula R(pull-up) = V(supply)-V(min)/Isink

The same formula works for the pull-down resistor only that we only use the voltage source instead of subtracting the minimum voltage from the maximum.

Applications of pull-up and pull-down resistors

Pull-up and pull-down resistors are mainly used in digital logic circuits. For example, they are ideas for connecting electronic components to microcontrollers and other digital logic gates. These devices have microcontrollers which minimize the need to use external devices to make such connections.

Pull-up and pull-down resistors are also used in analog to digital converters where they control the flow of current into resistive sensors.

Conclusion

I hope that this guide has given you valuable information on the difference between pull-up and pull-down resistors. In case you are working on an electronic project, you should be able to buy the right type of resistor that will be perfect for your device.

Also, once you are sure of the differences between the two, you should have the full confidence to buy the best of the two. When it comes to buying pull-up and pull-down resistors, where you buy matters. Ensure that you buy them from the best electronic component suppliers
