Everything You Need To Know About RF Transceiver Module

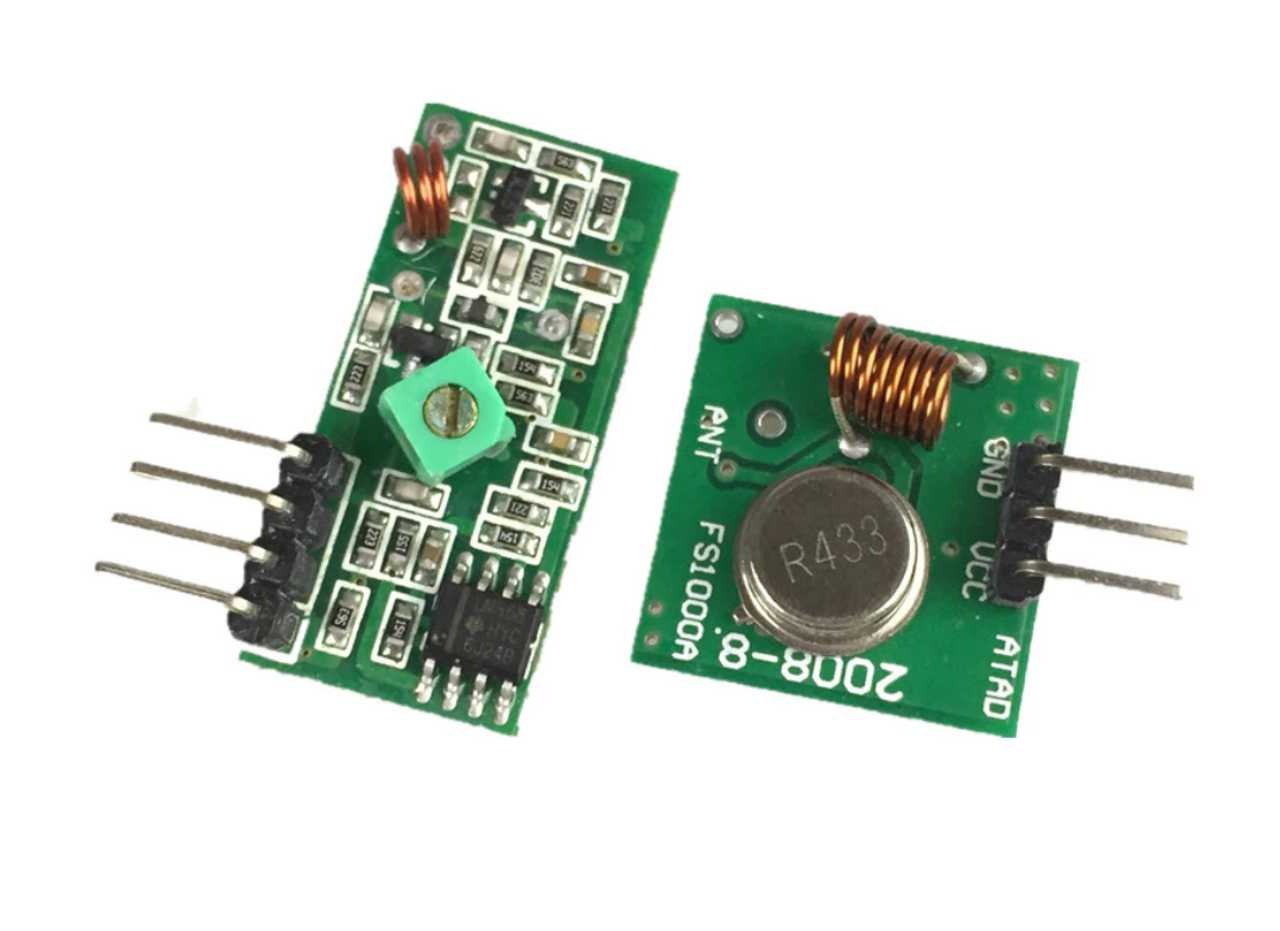

Image source Pixel Electric

There are two main aspects of communication: transmitting and receiving. Both parties at the ends of the communication line are actively involved in transmitting and receiving messages. This is where the importance of the transceiver module comes in. It combines both the elements of transmitter and receiver under a single package.

An RF transceiver module is an all-in-one electronic device that has both the transmitter and receiver embedded to form a single product.

While they are widely used in wireless communication channels, they are still relevant in cable or wired communication.

As long as there is a need for communication between different devices over a wireless network, an RF transceiver will always be a vital tool.

As the name suggests, the primary function of this device is to transmit and as well as receive radiofrequency signals.

This can happen in a local area that covers a small geographical area or it can be between different regions or even continents.

RF Transceiver modules come in different forms and configurations. If you are building an electronic application and need to use this module, then this article is perfect for you.

We are going to discuss everything that you should know about transceiver modules. You will also learn some valuable tips on how to buy the best transceiver modules for your application.

Components of transceiver modules

While a transceiver is the transmitter and receiver as its two main components, other components make this system fully functional and operational. These components are the antenna, signal processor, and power management module.

Antenna

The antenna is heavily relied on in the transmission and reception of electromagnetic waves in a transceiver.

 Its core function is to facilitate the conversion of electrical signals into electromagnetic waves both in the transmission and vice versa, both in signal transmission and reception. It provides a perfect link between the transceiver and the outside environment.

The structure and design of antennas have been evolving over the years. In the past, antennas were large and had to be placed outside at a strategic position. Modern antennas are small and are embedded into RF devices. They offer better performance when it comes to the transmission and reception of signals.

Oscillators

Oscillators are essential components that make up the transmission component of the transceiver modules. The main function of oscillators is to generate electric signals.

Signals that are generated by oscillators are always in the form of sine waves and square waves.

Oscillators are also found in the receiver components of the transceiver where they convert the received RF signal into intermediate frequency (IF) signals.

Mixers

The main function of mixers in transceivers is to translate radio frequencies (RF) to intermediate frequencies. They provide a cheaper option for signal processing and as well as translation.

Additionally, by incorporating mixers into a transceiver, it is possible to reduce the size and design of the antenna that is used in the process.

Like most components that make up the transceiver module, mixers work based on the principle of electromagnetic induction.

Frequency synthesizer

RF synthesizers in transceivers are mainly used for the management of frequencies that are generated during the transmission and reception of the signals.

The synthesizers improve the quality and accuracy of the signals. They also boost the stability of the signals in the RF communication network.

The presence of RF synthesizers in transceivers makes it easy to analyze and manage signal transmission in real time. It also improves the overall capacity of the transceivers to manage large chunks of data.

Power module

RF transceiver modules fully rely on electric power to operate. This is where the importance of power modules comes in.

Power management modules provide a perfect connection between the transceiver and the external power source.

The power supply ensures that each component in the transceiver module gets the right amount of current and voltage that it needs for smooth running.

The power management system is also responsible for protecting the module from the dangers of excess current and voltage.  A power module is also important when it comes to regulating the power consumption of your device.

How does a radio transceiver module work?

RF transceiver modules work on the principle of electromagnetic induction. This is a process in which a conductor is placed in a particular position and is subjected to a magnetic field. The result is the generation of electromotive forces (EMF). This principle is used both in the sending and receiving of signals between two different devices.

As we have discussed, a typical transceiver module comprises an antenna and a tuner. The antenna is responsible for receiving the signals while the tuner decodes and separates the signals.

Once the signals have been created or generated, an amplifier boosts the strength of the signals so that they can cover a better range. A strong radio signal is rarely distorted.

An antenna has electronic components that will convert the radio signals into electromagnetic waves before transmitting them to the target device.

The signals will then be received through the antenna of the receiving electronic device. This antenna will modify the incoming signals whereby they will be processed or decoded.

Demodulators are designed to extract valuable data from the radio signals that have been sent. This is a key element of radio communication as it makes it possible for the parties at the two ends of the communication line to understand each other.

There are various techniques that transceivers use to guarantee the integrity of radio signals that are being transmitted and received between the devices. For instance, they use noise filtering features to improve the quality of signals.

What about the generation and transmission of new signals? This is where oscillators come in handy.  They ensure that these signals can reach the target devices.

Overall, the working mechanism of RF transceivers entails creating links between devices and facilitating seamless data transmission and reception between them.

RF transceiver module technical specifications

Here are essential specifications of RF transceiver modules that you should know:

· Output power

· Frequency range

· Operating frequency

· Sensitivity

· Maximum transmission distance

· Communication interface

It is important to pay full attention to these technical specifications when choosing transceiver modules. They will determine the performance of the module in the real-world application.

Working modes

When it comes to radio communication, the working mechanism of a transceiver module comprises half-duplex and full-duplex modes.

In the half-duplex, the module can either transmit or receive data signals one at a time. It cannot execute both actions at ago. This is possible because both the transmitter and the receiver components of the module are connected to the same antenna with the help of an electronic switch. A perfect example of this working mechanism is the walkie-talkie.

In the full-duplex mode, the transmission and reception take place simultaneously.  You don’t have to wait for the other end of the communication to decode the message before sending another one. Modern communication devices are designed to support full-duplex mode.

Advantages of RF transceiver modules

 Here are some of the top reasons why transceivers are widely used in wireless communication systems:

· Performance: The modules are designed to facilitate seamless wireless communication between RF devices.  They enhance the integrity of data communication between devices

· Versatile: There are different types of RF transceiver modules in the market. You can easily choose one that is suitable for your application needs.

· Flexible and scalable: Would you like to improve the features of your transceiver modules? You can easily do so. The simplicity of these modules makes it easy to enhance their features and performance levels.

· Compact design: Most modern transceiver modules are small and compact. Not only are they easy to handle but also you can easily integrate them into other applications.

· Strong and durable:  Transceiver modules are built to last. They can also withstand unfriendly conditions yet still deliver the desired performance levels. However, you should still take time to look at the features and quality of the modules that you buy.

· Affordable: Thanks to the advancement of technology, transceiver modules are increasingly becoming affordable.

Limitations of RF transceiver modules

  Despite the advantages, some bottlenecks come with using RF transceiver modules.

First, each transceiver module is designed to support a specific frequency band. So, any data communication that is outside the set range will render the modules less useful.

Power requirement is another issue that could pose a potential problem for the  RF transceiver modules. Most of these modules require medium to high power sources> Small devices may not have adequate power to drive the modules.

In as much as the compactness of the RF transceiver module is an advantage, it could also be a disadvantage. The design may be too small making it hard to handle on some applications

Applications of RF transceiver modules

As long as a device relies on a radiofrequency communication system, it must have transceiver modules. Common applications of these modules include:

· Wireless communication devices; A good percentage of the wireless communication system is powered by the transceiver modules.  The only difference is there are different types of wireless networks and each type has a special transceiver module that is designed to support the network.

· Security systems: RF transceivers are widely used for enhancing communication in military and other security-related applications. Other than for audio communication, these modules are used for conducting surveillance.

· Navigation/ Transport: Transceivers are widely used for navigation in different modes of transport such as water and aerospace. They rely on the communication with satellite systems.

· Wireless sensors. In the age of IoT, wireless communication between devices has taken center stage.  At the center of all these are the transceiver modules.

· Radio and TV devices

· Medical devices that rely on wireless communication to send and receive signals

· All applications that rely on satellite communication

Are you building a device or product whose mode of communication will be through a wireless network?  Chances are you will need to incorporate transceiver modules among your requirements.  Contact the manufacturers and suppliers then choose the right type of transceiver modules that you think are suitable for your project.

FAQs about transceiver modules

Here are some of the frequently asked questions about transceiver modules.

How do we define a good-quality transceiver module?

Given the fact that transceiver modules are mainly used for communication applications, we can define them in terms of performance, reliability, and stability. Performance is the ability of the module to support fast and quality transmission and reception of data. The module should be stable at all times regardless of the external factors that tend to affect the quality of data transmission. The reliability of the module refers to its ability not to break down and interfere with the transmission and reception of data communication.

What is the difference between a transmitter module and a transceiver module?

As we have already defined, transceiver modules comprise both a transmitter and a receiver.  On the other hand, a transmitter is a separate electronic module that is specifically designed for generating data signals and transmitting them through an existing network. These signals facilitate the transmission of different types of data such as texts, audio, and videos among others.

Conclusion

 It is important to have all the essential information about transceiver modules. But, what should I do with this information?

If you are planning to buy transceiver modules, this information will be valuable in helping you make the right purchasing decision.

You will know the things to look out for when it comes to buying these modules. After all, you don’t want to end up with the wrong choice of modules.

Where you buy transceiver modules will always matter. Ensure that you buy from reputable suppliers and distributors.

 If you are looking for a reputable global transceiver modules supplier, consider choosing Rantle East Electronics.

We are a reputable global distributor of quality transceiver modules in China. Our experience in the electronics and technology industry spans over 20 years.

We source quality transceiver modules directly from the best manufacturers. In case you are planning to buy transceiver modules in bulk, we are a company that you should consider working with.

All you need is to contact us and we will be glad to work with you. Being a global company, we can still deliver your orders regardless of your location in the world.
