In modern electronics, ensuring stable power delivery is crucial for reliable circuit operation. Decoupling capacitors play a vital role in achieving this stability by mitigating noise and voltage fluctuations. This article explores the principles, selection, and application of decoupling capacitors, providing a detailed understanding of their importance in electronic design.

What is a Decoupling Capacitor?

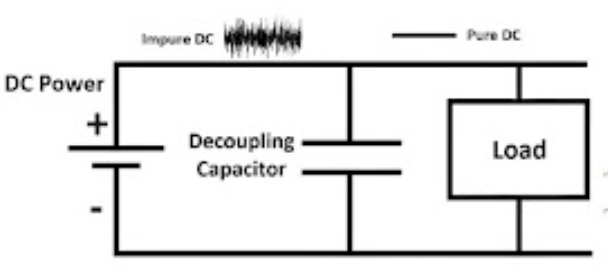

A decoupling capacitor (also known as a bypass capacitor) is a component used to stabilize the power supply voltage delivered to integrated circuits (ICs). It acts as a local energy reservoir, providing instantaneous current during transient demands and filtering high-frequency noise from the power rail. By doing so, it "decouples" the IC from fluctuations in the power supply, ensuring optimal performance.

Purpose and Function

Key Roles:

1. Noise Suppression: Filters high-frequency noise generated by rapid current changes in digital ICs (e.g., CMOS switching).

2. Voltage Stabilization: Prevents voltage droops or spikes by supplying transient current, compensating for power supply inductance.

3. Isolation: Minimizes crosstalk between circuit components by localizing noise.

How It Works:

• When an IC switches states, it draws sudden current bursts. The inductance of power traces ($V_{CC}$ and GND) resists rapid current changes ($V=L\frac{di}{dt}$), causing voltage fluctuations.

• A decoupling capacitor placed near the IC provides a low-impedance path for high-frequency currents, bypassing the power supply's inductance. Its impedance ($Z=\sqrt{ES{R}^2+(X_L?X_C{)}^2}$) is minimized at its resonant frequency, making it effective within a specific bandwidth.

Types of Decoupling Capacitors

1. Ceramic Capacitors (MLCC):

• Advantages: Low ESR/ESL, high-frequency response, compact size.

• Common Values: 0.1μF (100nF) for general decoupling; 1μF–10μF for bulk decoupling.

• Materials: X7R, X5R (stable across temperature), or C0G/NP0 (ultra-stable).

2. Tantalum/Electrolytic Capacitors:

• Use Case: Bulk decoupling for low-frequency noise.

• Drawbacks: Higher ESR, polarity sensitivity.

3. Polymer Capacitors:

• Benefits: Low ESR, longer lifespan than electrolytics.

Design Considerations

Placement and Layout:

• Proximity: Place capacitors as close as possible to the IC's power pins to minimize trace inductance.

• Grounding: Use short, wide traces or vias to connect directly to the ground plane.

• Multiple Capacitors: Combine values (e.g., 0.1μF, 1μF, 10μF) to cover broad frequency ranges. Smaller capacitors handle high frequencies, while larger ones address lower frequencies.

Capacitor Sizing:

• Impedance vs. Frequency: Select capacitors based on target noise frequency. For example, a 0.1μF MLCC resonates near 15MHz, ideal for digital ICs.

• Transient Current: Calculate required capacitance using $C=\frac{I?\mathrm{\Delta }t}{\mathrm{\Delta }V}$, where $I$ is current surge, $\mathrm{\Delta }t$ is pulse duration, and $\mathrm{\Delta }V$ is allowable voltage drop.

Power Distribution Network (PDN):

• Advanced systems model PDN impedance ($Z_{target}$) to ensure it remains below thresholds across all frequencies. Decoupling capacitors are part of this network, often simulated with tools like Ansys SIwave.

Common Mistakes

1. Insufficient Capacitors: Using too few capacitors for high-speed ICs.

2. Poor Placement: Long traces increase inductance, reducing effectiveness.

3. Ignoring ESR/ESL: High ESR capacitors fail to suppress noise; ESL limits high-frequency performance.

4. Overlooking Temperature/Voltage Ratings: Capacitance can drop with DC bias or temperature (e.g., X7R loses 15% at rated voltage).

Applications

1. Digital Circuits: Microcontrollers, FPGAs, and CPUs use arrays of decoupling capacitors to manage switching noise.

2. Mixed-Signal Systems: Isolate analog and digital grounds to prevent noise coupling.

3. RF/High-Speed Design: Ensure signal integrity in communication modules.

Decoupling vs. Bypass Capacitors

While often used interchangeably, subtle differences exist:

• Decoupling: Focuses on isolating local circuits from power supply noise.

• Bypassing: Shunts noise directly to ground, often at the IC level.

Conclusion

Decoupling capacitors are indispensable in maintaining power integrity, especially in high-speed and noise-sensitive applications. Proper selection, placement, and combination of capacitors ensure robust performance. As electronics evolve, understanding these components remains critical for designers aiming to mitigate noise and enhance reliability.
