In the realm of internal combustion engines, the knock sensor is a pivotal component that ensures optimal performance and longevity. This article delves into the intricacies of knock sensors, exploring their function, operation, types, and significance in modern engine management systems.

What is Engine Knock?

Engine knock, or detonation, occurs when the air-fuel mixture in the cylinder ignites prematurely due to excessive heat and pressure, rather than from the spark plug's timed ignition. This results in a characteristic knocking sound and can cause severe engine damage, including piston erosion and cylinder wall damage.

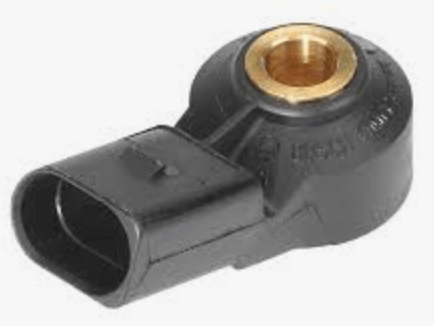

Function of a Knock Sensor

The knock sensor detects vibrations indicative of engine knock and relays this information to the Engine Control Unit (ECU). The ECU then adjusts ignition timing, air-fuel ratio, or boost pressure to mitigate knock, ensuring efficient combustion and preventing damage.

Key Components:

1. Housing: Typically metal or plastic, protecting internal components.

2. Piezoelectric Element: Generates voltage in response to mechanical stress (vibrations).

3. Resistor: Conditions the electrical signal.

4. Electrical Connectors: Transmit signals to the ECU.

5. Damping Materials: Filter out non-relevant vibrations.

Types of Knock Sensors

1. Resonant (Tuned) Sensors: Tuned to specific frequencies (5-15 kHz) typical of knock in a particular engine.

2. Non-Resonant (Wideband) Sensors: Detect a broader frequency range, relying on the ECU for signal processing.

Location and Installation

Knock sensors are strategically mounted on the engine block, cylinder head, or intake manifold to effectively capture vibrations. Proper installation, including manufacturer-specified torque, is crucial for accurate detection.

Symptoms of a Faulty Knock Sensor

• Check Engine Light: Often triggered by diagnostic trouble codes (e.g., P0325–P0334).

• Poor Performance: Reduced acceleration and power.

• Fuel Inefficiency: Increased consumption due to suboptimal combustion.

• Audible Knocking: Persistent knock despite ECU adjustments.

• Limp Mode: ECU restricts performance to prevent damage.

Testing and Diagnosis

• Scan Tools: Retrieve trouble codes and monitor real-time data.

• Multimeter/Ohmmeter: Check resistance (typically 50-100 kΩ).

• Oscilloscope: Analyze signal output during engine operation or induced vibrations.

Replacement and Maintenance

1. Locate Sensor: Refer to service manuals for exact placement.

2. Disconnect Battery: Ensure safety during replacement.

3. Install New Sensor: Adhere to torque specifications to avoid signal distortion.

4. Clear Codes: Use a scan tool to reset the ECU.

Maintenance is minimal but includes ensuring clean connections and secure mounting.

Advantages and Applications

• Engine Protection: Prevents detonation-related damage.

• Performance Optimization: Enables advanced ignition timing for efficiency.

• Support for Turbocharging/High Compression: Facilitates use of performance-enhancing technologies.

Applications: Predominantly in gasoline engines, especially turbocharged models. Diesel engines, utilizing compression ignition, do not typically use knock sensors.

Historical Context and Evolution

Introduced in the 1980s with electronic engine management, knock sensors have evolved from basic detectors to sophisticated components integral to modern ECUs, allowing for real-time adjustments and supporting engine innovations.

ECU Signal Processing

The ECU employs algorithms to distinguish knock from background noise, adjusting parameters in real-time. This feedback loop is vital for maintaining engine efficiency under varying conditions.

Performance Tuning Considerations

Enthusiasts modifying engines must consider the knock sensor's role. While stock sensors suffice for mild modifications, highly tuned engines may require aftermarket solutions to handle increased stress.

Challenges and Considerations

• False Readings: Caused by unrelated vibrations or electrical interference.

• Environmental Factors: Heat, oil, and vibrations can degrade sensor performance over time.

Conclusion

The knock sensor is indispensable in modern engines, balancing performance and protection. By enabling precise control over combustion, it allows manufacturers to push efficiency boundaries while ensuring reliability. As engine technology advances, the knock sensor will remain a cornerstone of effective engine management.
