The Manifold Absolute Pressure (MAP) sensor is a critical component in modern internal combustion engines, playing a vital role in optimizing performance, fuel efficiency, and emissions. This article explores the MAP sensor’s function, working principles, types, common issues, and advancements, providing a comprehensive guide for automotive enthusiasts and technicians.

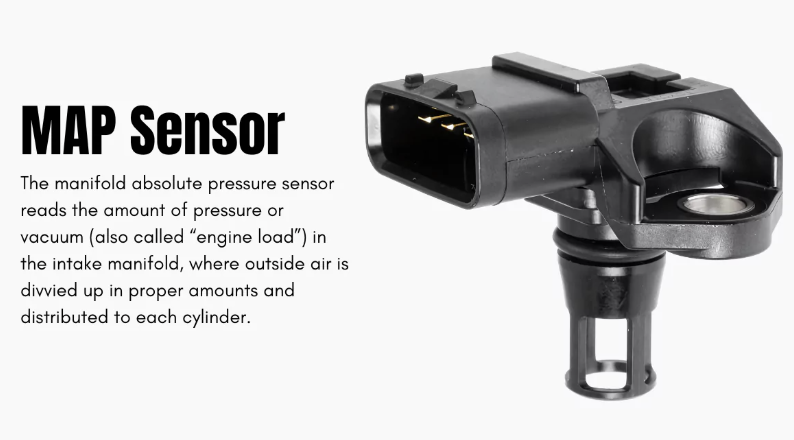

What is a MAP Sensor?

A MAP sensor measures the absolute pressure within the intake manifold of an engine. This data is relayed to the Engine Control Unit (ECU) to calculate air density, enabling precise fuel injection and ignition timing. Unlike a MAF (Mass Air Flow) sensor, which directly measures airflow, the MAP sensor infers air mass using pressure and temperature data, making it integral to engines using the speed-density fuel calculation method.

Key Functions:

1. Engine Load Determination: Detects pressure changes to assess engine load (e.g., idle vs. acceleration).

2. Fuel Injection Calibration: Helps the ECU adjust fuel delivery for optimal air-fuel ratios.

3. Ignition Timing Control: Influences spark timing to prevent knocking under high load.

4. Emissions Management: Ensures efficient combustion to reduce harmful emissions.

How Does a MAP Sensor Work?

The MAP sensor converts intake manifold pressure into an electrical signal. Here’s a breakdown of its operation:

Working Principle:

1. Pressure Measurement:

• At idle, the intake manifold has high vacuum (low pressure, ~18–22 inHg).

• Under load (e.g., acceleration), vacuum drops, and pressure rises.

• The sensor measures this absolute pressure (relative to a perfect vacuum).

2. Signal Conversion:

• Piezoresistive or capacitive elements inside the sensor translate pressure into voltage.

• Output signals vary: Analog (0–5V) or digital (CAN bus, PWM).

3. ECU Interpretation:

• The ECU combines MAP data with inputs from the IAT (Intake Air Temperature) sensor, throttle position, and RPM to calculate air mass.

• Formula: Air Mass = (MAP × Cylinder Volume) / (R × IAT), where R is the gas constant.

Types of MAP Sensors:

1. Analog MAP Sensors: Produce a continuous voltage signal (common in older vehicles).

2. Digital MAP Sensors: Transmit data via serial protocols (e.g., CAN) for improved accuracy.

3. Integrated Sensors: Combine MAP with temperature sensing (TMAP sensors).

Symptoms of a Faulty MAP Sensor

A malfunctioning MAP sensor disrupts engine performance. Key symptoms include:

1. Poor Acceleration: Incorrect fuel mixture causes hesitation or stalling.

2. Reduced Fuel Efficiency: Rich or lean conditions waste fuel.

3. Check Engine Light: Codes like P0105–P0109 indicate MAP circuit issues.

4. Rough Idling: Erratic pressure readings lead to unstable combustion.

5. Engine Misfires: Lean mixtures cause incomplete combustion.

Common Causes of Failure:

• Contamination: Oil or carbon buildup from the intake.

• Electrical Issues: Broken wires or corroded connectors.

• Vacuum Leaks: Compromise pressure readings.

Diagnosing and Replacing a MAP Sensor

Testing Procedures:

1. Visual Inspection: Check for damaged hoses or connectors.

2. Voltage Check: Use a multimeter to test output (e.g., 1V at idle, 4.5V at WOT).

3. Scan Tool Analysis: Monitor live data for erratic readings.

4. Vacuum Test: Apply controlled vacuum/pressure to verify signal response.

Replacement Steps:

1. Disconnect the battery.

2. Locate the MAP sensor (typically on the intake manifold).

3. Remove the electrical connector and mounting hardware.

4. Install the new sensor and reconnect components.

Cost: Typically $50\text{–}$200, depending on the vehicle.

MAP Sensors in Modern Advancements

1. Integration with TMAP Sensors: Combined pressure and temperature sensing for compact design.

2. Turbocharged Engines: Critical for monitoring boost pressure and preventing overboost.

3. Digital Communication: Faster data transfer for real-time ECU adjustments.

4. Emissions Compliance: Enhanced precision aids in meeting stringent regulations (e.g., Euro 6, EPA standards).

MAP vs. MAF Sensors

While both manage air-fuel ratios, their approaches differ:

• MAP: Calculates air density using pressure, ideal for forced induction engines.

• MAF: Directly measures airflow, common in naturally aspirated engines.
  Many modern engines use both for redundancy and accuracy.

Conclusion

The MAP sensor is indispensable in modern engine management, ensuring optimal combustion under varying conditions. Understanding its function, recognizing failure symptoms, and maintaining it properly can prevent costly repairs and sustain engine performance. As automotive technology evolves, MAP sensors will continue to play a pivotal role in advancing efficiency and reducing environmental impact.

By staying informed about components like the MAP sensor, drivers and technicians can better appreciate the engineering intricacies that keep vehicles running smoothly.
