A crystal oscillator is an electronic circuit that leverages the mechanical resonance of a vibrating piezoelectric crystal—typically quartz—to generate a stable and precise electrical signal at a specific frequency. Widely regarded as the "heartbeat" of modern electronics, it ensures accurate timing and synchronization in devices ranging from wristwatches to advanced communication systems.

2. Working Principle
The core mechanism relies on the piezoelectric effect:

• When an electric field is applied to a quartz crystal, it mechanically deforms.

• Conversely, mechanical stress generates an electric charge.

• This bidirectional energy conversion sustains oscillations at the crystal's natural resonant frequency, determined by its physical dimensions and cut (e.g., AT-cut, SC-cut).

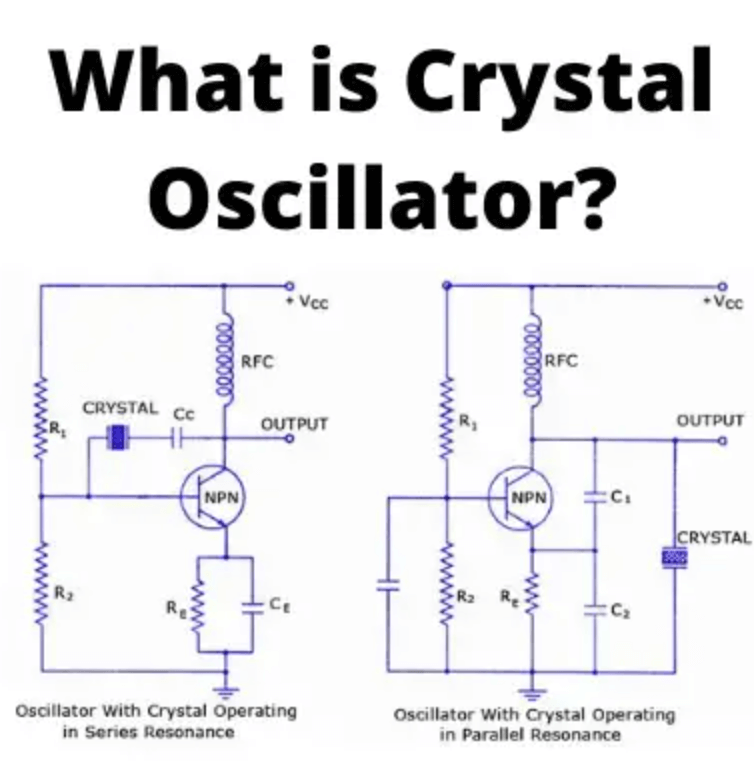

The oscillator circuit amplifies and stabilizes these oscillations, compensating for energy losses through feedback loops. For example, a simple Pierce oscillator configuration includes the crystal, transistors, capacitors, and resistors.

3. Key Components

• Quartz Crystal: Synthetically manufactured and precision-cut to achieve desired frequency (e.g., 32.768 kHz for watches, 10–100 MHz for microcontrollers).

• Oscillator Circuit: Maintains oscillation through amplification and phase-shift networks.

• Load Capacitors: Tune the circuit to match the crystal's nominal frequency.

4. Types of Crystal Oscillators

5. Critical Performance Parameters

• Frequency Stability: Tolerance to temperature, voltage, and load changes (e.g., OCXOs achieve ±0.001 ppm).

• Aging: Long-term frequency drift due to crystal material changes (~±1–5 ppm/year for quartz).

• Phase Noise: Short-term frequency fluctuations, critical for RF systems.

• Power Consumption: Ranges from 1 μW (low-power XOs) to 10 W (high-precision OCXOs).

6. Applications

• Timing & Synchronization: Real-time clocks (RTCs) in computers, smartphones.

• Communications: Carrier wave generation in radios, 5G NR synchronization.

• Industrial Systems: PLCs, robotics, and sensor networks.

• Aerospace: Satellite navigation (GPS/GNSS), avionics.

7. Historical Evolution

• 1921: Walter Guyton Cady invented the first quartz crystal oscillator.

• 1920s–1940s: Adoption in radio transmitters and military equipment during WWII.

• 1970s: Miniaturization enabled integration into consumer electronics.

• 2000s: MEMS-based oscillators emerged as alternatives (e.g., SiTime products).

8. Challenges & Limitations

• Environmental Sensitivity: Temperature extremes or mechanical shocks degrade performance.

• Frequency Rigidity: Traditional XOs lack programmability, requiring multiple crystals for multi-frequency systems.

• Cost vs. Precision Trade-off: OCXOs offer ultra-high stability but consume significant power and space.

9. Future Trends

• MEMS Oscillators: Silicon-based designs with programmable frequencies, superior shock resistance, and smaller footprints.

• Chip-Scale Atomic Clocks: Emerging ultra-stable alternatives for critical infrastructure.

• IoT-Driven Innovations: Low-power, miniaturized XOs for wearables and edge devices.

10. Conclusion
Crystal oscillators remain indispensable for precision timing across industries. While quartz-based designs dominate, MEMS and atomic clock technologies promise to address current limitations, enabling next-generation applications in quantum computing and 6G networks. For time-sensitive projects, selecting the right oscillator type requires balancing stability, power, size, and cost.
