A gyroscope sensor, commonly referred to as a gyro sensor, is an electronic device designed to measure and maintain orientation and angular velocity (rotational speed). It is a critical component in modern technology, enabling motion sensing and stabilization in applications ranging from smartphones to aerospace systems. Unlike traditional gyroscopes with mechanical spinning wheels, modern versions, particularly MEMS (Micro-Electro-Mechanical Systems) gyros, use advanced microfabrication techniques to achieve compact, efficient motion detection.

2. Historical Evolution
The gyroscope concept dates back to 1852, when French physicist Léon Foucault invented a mechanical gyroscope to demonstrate Earth's rotation. Early gyroscopes relied on a spinning rotor mounted in gimbals to maintain orientation. These were pivotal in navigation systems for ships and aircraft. The 20th century saw the development of optical and laser gyroscopes, such as ring laser gyros (RLGs), which used light interference for precision. The advent of MEMS technology in the 1980s revolutionized gyroscopes, making them small, affordable, and suitable for consumer electronics.

3. Working Principle
Modern MEMS gyroscopes operate on the Coriolis effect. Here’s a step-by-step breakdown:

• Vibrating Structure: A tiny mass (resonator) on a silicon chip vibrates at a fixed frequency. This can resemble a tuning fork or vibrating ring.

• Coriolis Force: When the sensor rotates, the Coriolis effect induces a secondary vibration perpendicular to the original motion.

• Detection: Capacitive sensors measure the displacement caused by this secondary vibration. The resulting electrical signal is processed to calculate angular velocity (in degrees per second, °/s).

Unlike mechanical gyros, MEMS devices require no spinning parts, enhancing durability and miniaturization.

4. Types of Gyroscopes

• Mechanical Gyroscopes: Use spinning rotors and gimbals. Found in traditional aviation systems.

• Optical Gyroscopes:

• Ring Laser Gyros (RLGs): Use laser beams in a closed loop; rotation causes phase shifts detected via interference.

• Fiber Optic Gyros (FOGs): Similar to RLGs but use coiled optical fibers.

• MEMS Gyroscopes: Dominant in consumer electronics due to their small size, low cost, and integration capabilities.

• Hemispherical Resonator Gyros (HRGs): Use a quartz hemisphere vibrating at resonant frequencies, offering high precision for aerospace.

5. Key Specifications

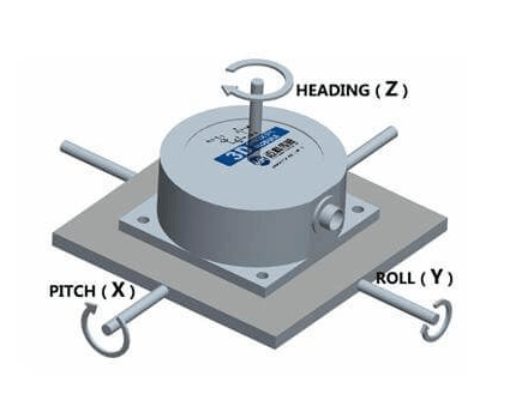

• Axes: Single-, dual-, or tri-axis (measuring roll, pitch, yaw).

• Range: Maximum detectable angular velocity (e.g., ±250°/s to ±2000°/s).

• Sensitivity: Resolution (e.g., milli-degrees per second).

• Noise and Drift: Errors that accumulate over time, requiring calibration.

• Power Consumption: Critical for portable devices.

6. Applications

• Consumer Electronics:

• Smartphones: Screen rotation, gaming, AR/VR.

• Drones: Stabilization and flight control.

• Wearables: Fitness tracking (e.g., step counting).

• Automotive: Electronic stability control (ESC), navigation systems.

• Aerospace: Inertial navigation for aircraft and satellites.

• Industrial: Robotics (motion control), pipeline inspection.

• Healthcare: Surgical instruments, prosthetics.

• Photography: Image stabilization in cameras and gimbals.

7. Gyroscope vs. Accelerometer
While accelerometers measure linear acceleration, gyroscopes detect rotational motion. They are often combined in Inertial Measurement Units (IMUs) alongside magnetometers for full 6-degree-of-freedom tracking (3D orientation and movement). Sensor fusion algorithms (e.g., Kalman filters) correct drift and improve accuracy.

8. Challenges and Limitations

• Drift: Integration of angular velocity to calculate orientation leads to cumulative errors.

• Temperature Sensitivity: MEMS performance can vary with temperature, necessitating compensation.

• Size vs. Accuracy Trade-off: Smaller MEMS devices may sacrifice precision.

9. Future Trends

• Improved MEMS Designs: Higher accuracy and lower noise.

• Quantum Gyroscopes: Emerging tech using superfluid helium or cold atoms for ultra-precise measurements.

• Integration with AI: Enhanced motion prediction and error correction.

• Energy Harvesting: Reducing power needs for IoT devices.

Conclusion
Gyroscope sensors have evolved from mechanical curiosities to indispensable components in modern technology. Their ability to precisely track rotational motion enables innovations across industries, from everyday gadgets to cutting-edge aerospace systems. As MEMS technology advances and new materials emerge, gyroscopes will continue to play a pivotal role in the development of autonomous systems, immersive technologies, and beyond. Understanding their principles and applications is key to appreciating their impact on the technological landscape.
